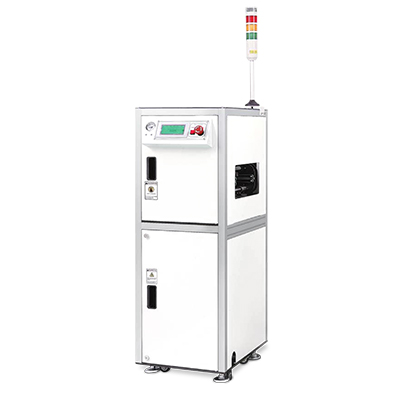

Inverter (Board Flipper)
This unit is used to flip the PCB for double side assembly.
Features
- SMEMA Interface
- Easy operation
- Reduced tact time by removing backlash process after turning
- Buzzer, LED tower light
Options
- Touch screen
- Auto width adjustment
- Aux. buffer Conveyor
- Conveyor Speed Controller
Media
Conveyor Models
KIV-420S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 420 x 615 x 1230
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 264 lbs
KIV-420L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 550 x 745 x 1250
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 308 lbs
KIV-420XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 720 x 875 x 1250
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 374 lbs
KIV-420Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 530 x 695 x 1230
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 286 lbs
KIV-420X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 620 x 815 x 1250
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 330 lbs
