AMS' flagship AGV can be programmed to use up to 100 SMART routes. User-friendly touch screen allows you to view AGV status, control travel, program routes, select language, and more.

Categories AGV, Intralogistics Tag agv

Features

Highly resistant frame
Heavy-duty battery
Economical and durable
User-friendly
WIFI communication
Up to 3300 lb. towing capacity
Up to 100 programmable routes

Options

2200 lbs. live load capacity
3300 lbs. towing capacity
AGV traffic control system
RF remote controller for Start / Stop
Headlight

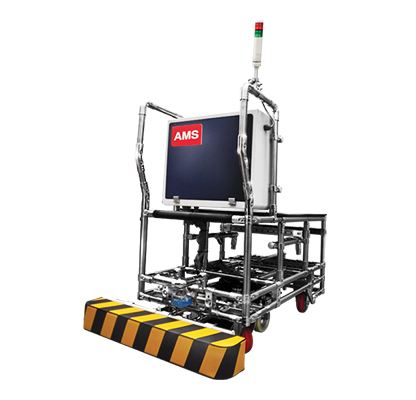

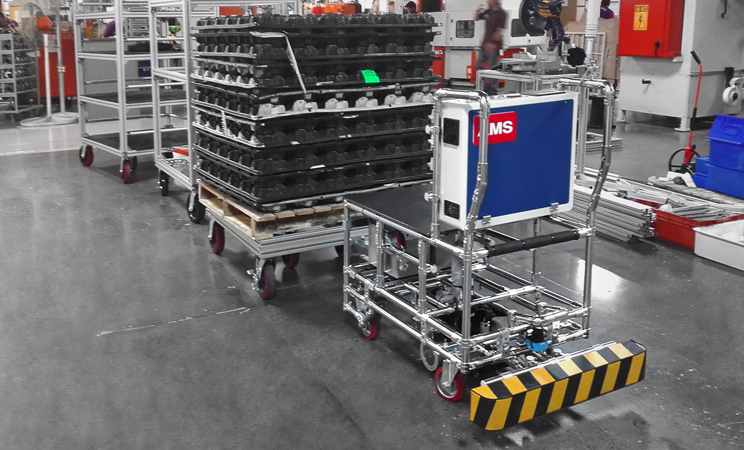

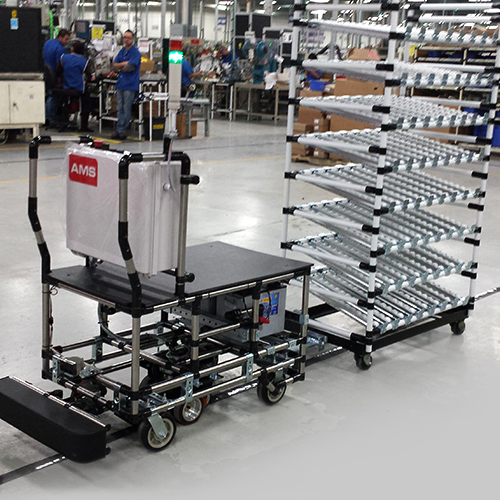

Our Towing AGV is comprised of proprietary materials and components that will allow you to tow up to 3,300 lbs, as well as program, and customize routes. The main components are:

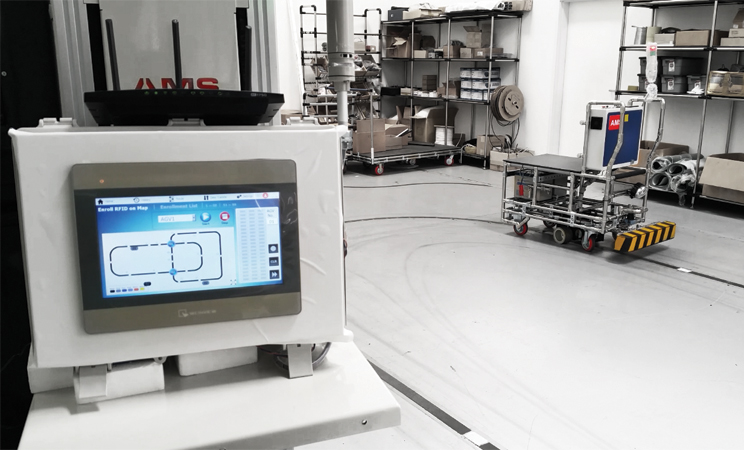

Control Panel

Large knobs for easy function identification, 4.3" color touch screen displays operations, status, configuration, commands, alarm history, and more.

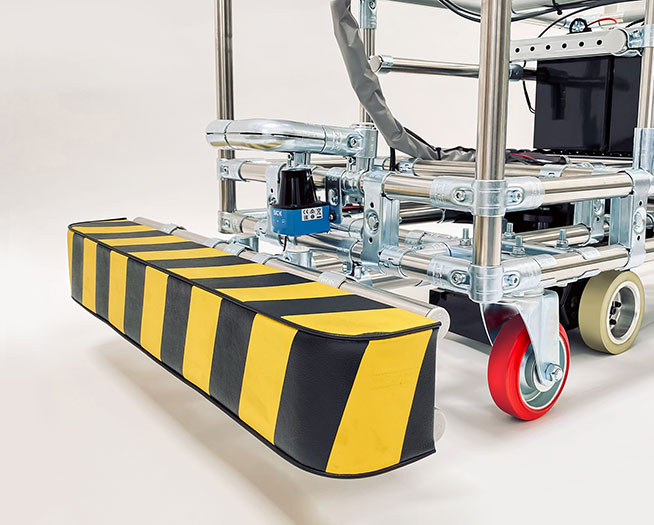

Lidar Sensor

Lidar 2d laser scan sensor (SICK).
Pipe and Joint Frame

The Towing AGV features a robust steel frame and is assembled to specifications using our own pipe and joint modular system.

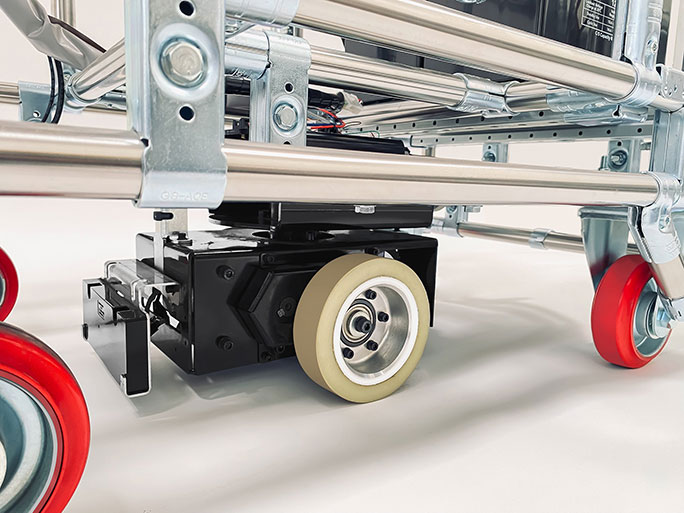

Motor Unit

100W BLDC motor (high efficiency and long life time), electric brake system. Dual differential drive wheels.
